| 型號 | JR4105ZD1 | JR4105ZLD1 | JR6105ZD1 | JR6105AZLD1 | JR6105IZLD1 | JR6110ZLD1 |
| Model | ||||||
| 進氣方式 | 渦輪增壓 | 增壓中冷 | 渦輪增壓 | 增壓中冷 | ||
| Aspiration | ||||||
| 氣缸數(shù)-缸徑*活塞行程 | 4-105*125 | 4-105*125 | 6-105*125 | 6-105*130 | 6-105*135 | 6-110*130 |
| Cylinder NO.Bore*Stroke(mm) | ||||||
| 標定功率/轉(zhuǎn)速 | 56/1500 | 65/1500 | 88/1500 | 110/1500 | 132/1500 | 171/1500 |
| Rated power/speed (kw/r/min) | ||||||
| 標定工況燃油消耗率 | ≤231 | ≤224 | ≤218 | ≤214 | ||
| Rated condition fuel consumption rate(g/kw.h) | ||||||
| 標定工況潤滑油消耗率 | ≤1.63 | |||||
| Rated condition Lubricating oil consumption rate(g/kw.h) | ||||||
| 潤滑油容量 | 15 | 18 | ||||
| Volume of coolant(L) | ||||||

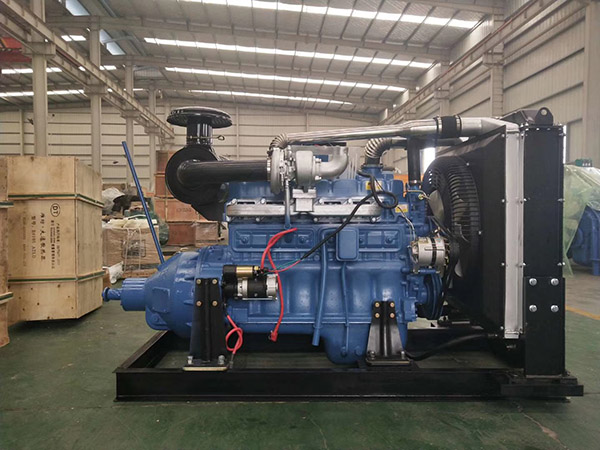

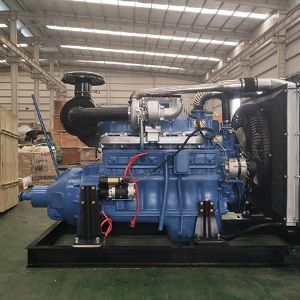

6105柴油機帶離合器
6105柴油機帶離合器 2019-5-23 本文被閱讀 2273 次
